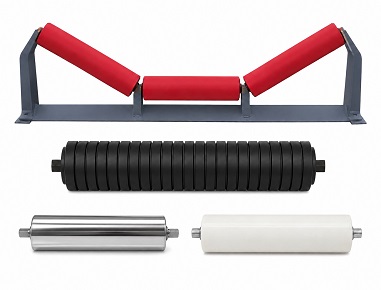

Product Image

Product Introduction

Conveyor rollers, also known as conveyor idlers, are key supporting components in belt conveyor systems. They support the conveyor belt and transported materials, reduce running resistance, and help keep the conveyor operating smoothly and continuously.

They are widely used in mining, quarrying, cement plants, coal handling systems, power plants, ports, steel plants, and bulk material handling applications.

Main Types

Carrying Roller

Used on the carrying side of the conveyor to support the loaded belt.

Troughing Roller

Used in multi-roller sets to form a trough shape, helping prevent material spillage and improve conveying capacity.

Return Roller

Installed on the return side of the conveyor to support the empty belt. Available in flat, comb, spiral, or rubber disc designs depending on the working condition.

Impact Roller

Installed at loading and transfer points to absorb material impact and protect the conveyor belt.

Self-Aligning Roller

Used to help correct belt misalignment and reduce belt edge damage.

Guide Roller

Installed vertically or on the side of the conveyor to limit belt side movement and assist belt tracking.

Materials

Steel Roller

High load capacity, wear resistant, suitable for mining, cement, quarry and heavy-duty applications.

HDPE / Nylon Roller

Lightweight, low noise, corrosion resistant, suitable for light-duty or corrosive environments.

Ceramic Roller

High wear resistance and chemical resistance, suitable for abrasive or corrosive working conditions.

Sealing Options

Labyrinth Seal

Common sealing structure for dust and moisture protection.

Contact Seal

Stronger sealing performance for dusty, muddy or harsh environments.

Technical Specifications

• Common Roller Diameters: 89 mm, 108 mm, 133 mm, 159 mm, 194 mm
• Common Trough Angles: 30°, 35°, 45°
• Shaft diameter: Custom specifications available upon request.
• Bearing type: Custom specifications available upon request.
• Tube thickness: Custom specifications available upon request.
• Roller length: Custom specifications available upon request.
• Surface treatment and material selection: Custom specifications available upon request.

Applications

• Mining Industry
• Quarry Industry
• Cement Plants
• Coal Handling Systems
• Power Plants
• Ports and Terminals
• Steel Plants
• Bulk Material Handling Systems

Key Features

• Low running resistance
• Reliable dustproof and waterproof sealing
• Smooth and wear-resistant roller surface
• Strong tube structure with good bending resistance
• Easy installation and maintenance
• Multiple material options for different working conditions
• Suitable for dry, dusty, wet, corrosive and high-impact environments

Standards

• GB/T 10595-2017 Belt Conveyor
• GB/T 13792-2013 Technical Specification for Belt Conveyor Idlers

Request A Quote

Please provide:

• Roller type
• Roller diameter
• Roller length
• Shaft diameter
• Bearing type
• Material
• Quantity
• Application
