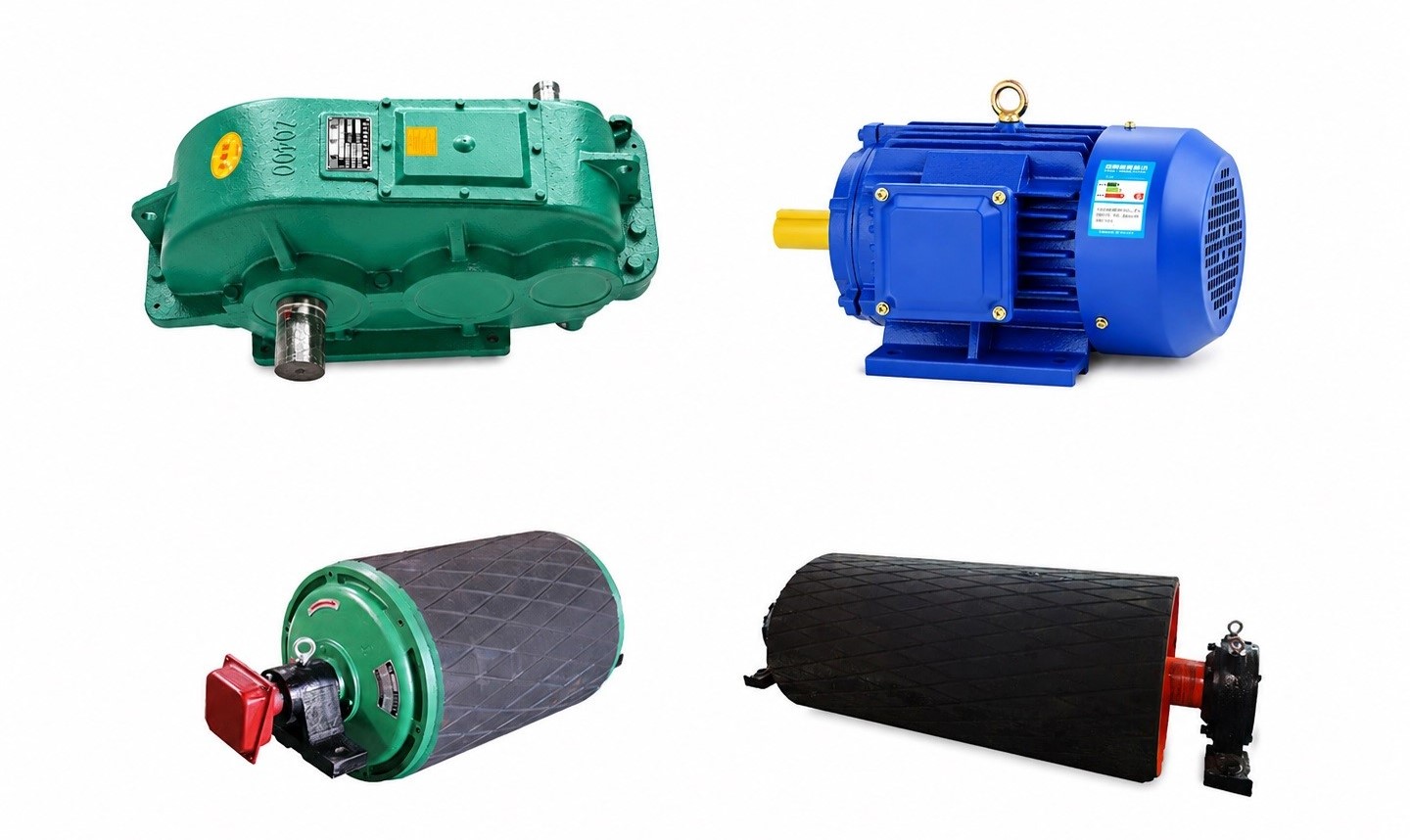

Product Image

Product Introduction

Drive components for belt conveyor systems, including industrial gearboxes, electric motors and motorized pulleys for mining, quarrying, cement plants and bulk material handling.

Industrial Gearbox

Available gearbox options include JZQ Gearbox, ZQ Gearbox and Helical Gearbox. JZQ gearboxes are commonly selected for conveyor, mining, lifting and material handling equipment where a robust horizontal reducer is required.

JZQ Gearbox

• Two-stage helical gear reducer
• Cast iron housing
• Horizontal split structure
• Reversible operation
• Suitable for conveyor, mining, lifting and material handling equipment
• Common sizes: JZQ250, JZQ350, JZQ400, JZQ500, JZQ650, JZQ750, JZQ850, JZQ1000
• Ratio range: 8.23 to 48.57
• Other gearbox specifications: Custom specifications available upon request.

Electric Motor

Available motor options include Three Phase Asynchronous Motor, Y Series Motor and High Efficiency Motor for conveyor drive and industrial transmission applications.

• S1 continuous duty
• 380V / 50Hz
• IP54 protection
• F class insulation
• IC411 self-fan cooling
• Common speeds: 2 pole, 4 pole, 6 pole, 8 pole
• B3, B5, B35 mounting options
• Other voltage, power and mounting requirements: Custom specifications available upon request.

Motorized Pulley

Available pulley options include YD Oil-Cooled Motorized Pulley, Oil-Cooled Type and Conveyor Drive Pulley. The YD oil-cooled motorized pulley integrates the drive motor and reduction gearbox inside the pulley shell for a compact conveyor drive arrangement.

• Built-in motor and gearbox
• Compact conveyor drive structure
• Oil cooling and lubrication
• Suitable for belt conveyors
• Common diameters: 320mm, 400mm, 500mm, 630mm
• Power range: 1.5kW to 22kW
• Belt speed: 0.63 to 2.0 m/s
• Other pulley size and drive requirements: Custom specifications available upon request.

Applications

• Mining
• Quarrying
• Cement Plants
• Coal Handling
• Power Plants
• Ports
• Bulk Material Handling Systems

Request A Quote

Please provide:

• Product type: motor / gearbox / motorized pulley
• Power
• Speed ratio
• Voltage
• Mounting type
• Quantity
• Application
